Factors Affecting Offset Ink Adhesion On Different Paper Grades And Packaging Materials

Different paper grades-such as coated, uncoated, glossy, matte, recycled, and specialty papers-react very differently to ink. Likewise, packaging materials such as boards, kraft paper, metallic substrates, polymer-coated surfaces, and laminated materials each present unique challenges. Ink adhesion involves a combination of ink chemistry, surface energy, porosity, drying mechanisms, and the interaction between ink and substrate.

One of the primary factors affecting ink adhesion is the surface energy of the paper or packaging material. Surface energy describes how easily a liquid (in this case, ink) can wet or spread across the substrate. The general rule is simple:

Higher surface energy → Better wetting → Better adhesion.
Lower surface energy → Poor wetting → Weaker adhesion.

Most uncoated papers naturally have higher surface energy because their fiber structures are open and slightly porous. This allows the ink vehicle to penetrate into the paper surface, enhancing mechanical anchoring. However, too much absorbency can cause problems such as dot gain and reduced gloss. Even so, in terms of adhesion, uncoated papers usually perform well.

Coated papers, on the other hand, have a smoother surface and lower absorbency. They often contain clay or calcium carbonate coatings that reduce penetration. While this improves gloss and color sharpness, it also means that adhesion depends more on the chemical compatibility between ink resins and coating surface. If the coating is too smooth or too tightly sealed, adhesion may weaken.

When it comes to packaging materials such as folding boxboard, kraft liner, and corrugated board, the surface energy depends on the pulp type and the coating applied. Recycled fiber content, which is common in kraft packaging materials, sometimes reduces fiber bonding strength and surface uniformity, making adhesion more challenging. Surface treatments like sizing, calendaring, or barrier coatings further influence ink wetting.

Synthetic packaging materials like BOPP, PET, PVC, and PE films present an even lower surface energy. These materials are very smooth, hydrophobic, and non-porous. Offset ink adhesion on such substrates is often weak unless the surface has been corona treated or chemically modified. Understanding these surface differences enables printers to adjust ink formulations or select the appropriate substrate to achieve better performance.

Another major factor in offset ink adhesion is the composition of the ink vehicle. The vehicle system typically includes resins, oils, varnishes, and additives that determine how the ink behaves on the press and how it bonds to paper or packaging surfaces.

Resins are the key components responsible for film formation. Alkyd resins, phenolic resins, hydrocarbon resins, and modified vegetable oils all influence how well an ink adheres to various substrates. Resin compatibility is essential because even if the ink wets the surface, it will not anchor properly if the resin has poor interaction with the substrate.

On uncoated paper, the ink vehicle can partially absorb into the fiber network, allowing the resin to lock the pigment in place. This natural anchoring mechanism offers good adhesion, even with standard resin systems.

However, when printing on coated stock, the resin must interact with the mineral-based coating. Some coatings are alkaline, while others are acidic. Ink manufacturers adjust resin chemistry to match these conditions. For instance, inks used for alkaline-coated papers must avoid resin systems prone to saponification.

When printing on film-based packaging materials, traditional offset resins often do not perform well because they cannot penetrate or chemically bond with the smooth surface. UV offset inks are used more frequently in these cases. UV-curable acrylic resins create a strong polymer network after curing, allowing the ink film to sit firmly on low-absorbency surfaces.

Another important factor is the drying mechanism. Oxidation-setting inks require oxygen, while penetration-setting inks rely on paper absorbency. If the chosen resin system does not match the substrate characteristics, drying-and therefore adhesion-will be negatively affected.

Modern printing materials often come with different types of surface coatings or barrier layers that significantly influence ink adhesion. The rise of high-quality packaging materials has made these treatments very common.

For example, gloss-coated and matte-coated papers typically contain dense layers of mineral pigments and binders. These layers are smooth and uniform, which enhances image quality but leaves little room for the ink resin to penetrate. If the coating is too tight or polished, adhesion becomes dependent on surface chemistry rather than mechanical anchoring.

Some coated materials feature polymer-based barrier coatings, such as polyethylene (PE), polypropylene (PP), or acrylic layers. These coatings are designed to resist water, oil, or moisture migration. While they improve packaging performance, they also reduce ink adhesion because the ink cannot penetrate these sealed surfaces. Special offset ink grades or primer coatings may be required to improve printability.

In the packaging industry, laminated materials-for example, paper laminated with plastic film or foil-present even greater challenges. These substrates require special inks designed for non-porous surfaces. UV offset inks or hybrid inks with strong adhesion promoters are generally preferred.

Surface treatments also play an important role. Corona treatment, commonly used on BOPP or PE films, increases surface energy by adding polar groups, making the substrate more receptive to ink. Flame treatment can achieve a similar effect for certain materials. On the paper side, treatments like sizing, calendering, or clay coating alter absorbency and smoothness, directly impacting adhesion.

Printers must be aware of all coatings and treatments present on the material. Choosing the appropriate ink formulation and, when necessary, using pre-treatments helps ensure that the ink adheres reliably to complex packaging surfaces.

Mechanical anchorage is another important factor for adhesion in offset printing. It refers to the physical interlocking of the ink film with the tiny pores, fibers, or voids present on the material surface.

Materials with higher porosity, such as uncoated offset paper or recycled kraft board, allow ink to be partially absorbed. This creates a strong mechanical bond that supports adhesion even when chemical compatibility is not ideal. However, excessive porosity can lead to ink consumption issues and reduced sharpness in fine details.

In contrast, materials with low porosity, including coated paper and polymer films, offer little room for penetration. On these surfaces, adhesion depends more on surface chemistry and resin formulation. If the surface is too smooth, ink may sit on top like a thin layer of paint without anchoring, leading to risks of cracking, flaking, or easy rub-off.

Surface roughness also influences adhesion. Coated papers that have been heavily calendered for a glossy finish may have a mirror-smooth surface that limits ink grip. Matte coatings typically have micro-texture that improves adhesion slightly but still does not match the anchoring potential of uncoated stock.

Packaging materials such as corrugated board have uneven, fibrous surfaces. Ink adhesion on these surfaces varies across the peaks and valleys of the paper structure. In such cases, adhesion is often strong, but print definition may be affected. Understanding these surface characteristics allows printers to adjust ink film thickness, tack, or fountain solution levels to enhance adhesion across different paper grades and packaging substrates.

Printing conditions on the press can also significantly influence ink adhesion. Even if the ink and substrate are well matched, poor environmental parameters or incorrect press settings can weaken adhesion performance.

Humidity is one key factor. Paper absorbs moisture easily. When the paper contains too much moisture, its surface becomes softer and less receptive to ink. Excess humidity can also affect fountain solution balance, causing emulsification that interferes with proper ink transfer.

Temperature is another consideration. Warmer temperatures can reduce ink viscosity and make the ink flow too freely, preventing the ink from forming a solid film on the substrate. Colder temperatures, on the contrary, may make the ink too stiff, leading to poor wetting and weak anchoring.

Press speed also matters. When printing at very high speeds, the ink film may not have enough time to begin drying or setting before hitting the next roller or sheet. This can cause smearing, set-off, or reduced adhesion.

The ink-water balance is one of the most critical factors in offset printing. Excess water weakens the ink film and interferes with bonding. Too little water, however, may cause ink to spread excessively. Maintaining proper water balance ensures that the ink film remains strong and stable as it transfers onto the substrate.

Finally, the condition of press rollers, blankets, and plates also affects ink lay-down. Worn-out rollers or blankets with poor release properties can cause uneven ink distribution, leading to adhesion inconsistencies across the sheet.

Different packaging applications have different mechanical and durability requirements. These practical considerations significantly influence the level of adhesion needed from the ink.

For example, food packaging, pharmaceutical boxes, and cosmetic cartons often undergo extensive handling, folding, and transportation. The ink on these substrates must resist cracking during folding and must maintain color integrity despite frequent contact. If adhesion is not strong enough, the ink may flake along the creases, damaging brand appearance.

In e-commerce packaging or heavy-duty shipping boxes, the printed surfaces experience abrasion, stacking pressure, and exposure to environmental variations. These conditions require inks with stronger adhesion, harder resin systems, or special rub-resistant additives.

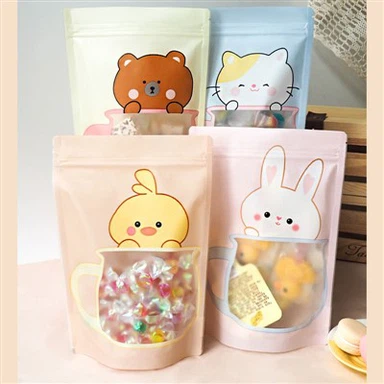

When printing on plastic-coated cartons or flexible packaging, the substrate must endure bending, stretching, or flexing. Adhesion must be optimized not only for static bonding but also for dynamic performance during movement. UV-curable inks or hybrid inks are often preferred for such demanding applications because they form a tougher polymer network.

Some packaging materials also face chemical exposure, such as grease, solvents, or moisture. Barrier coatings may be used for protection, but these coatings also restrict ink adhesion. Printers must find a balance between barrier performance and print receptivity.

Understanding the real-world conditions that the printed material will face-handling, folding, rubbing, temperature changes, or moisture exposure-allows printers to choose or formulate inks that meet the required adhesion performance.
